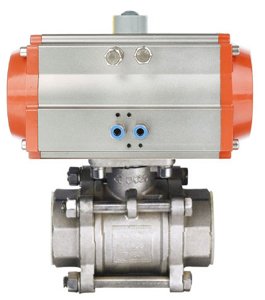

Pneumatic Inner Thread 3-pcs Ball Valve

Pneumatic Inner Thread 3-pcs Ball Valve


Inner thread 3-pcs ball valve manufacturer and wholesaler. Our products are produced according to the ISO9001:2000 standards. There are more than 10 well educated and experienced technicians in our company to deal with OEM pneumatic Inner thread 3-pcs ball valve services for our customers. Equipped with advanced facilities and high technology, now we are supplier of some famous enterprises such as the Parker Hannifin in the USA.

• Standard
Design:ANSI B 16.34
Testing:AP1598
APPLICATION
For General Chemical and Industrial Services
Steam Working Pressure:150PSIWSP
Temp. Range: -20°C~+150°C

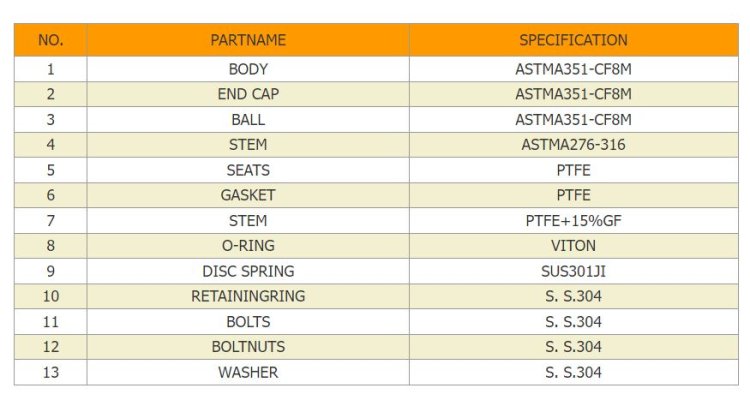

SPECIFICATION
Investment Cast Body & End Cap
End Type: Threaded BSP or NPT, Buttweld
Socket Weld2PC
Design For Fast Installationn & Simple
Mailtensance Bottom-loaded, Blow-out-proof Stem
